Modular GMV5

Description

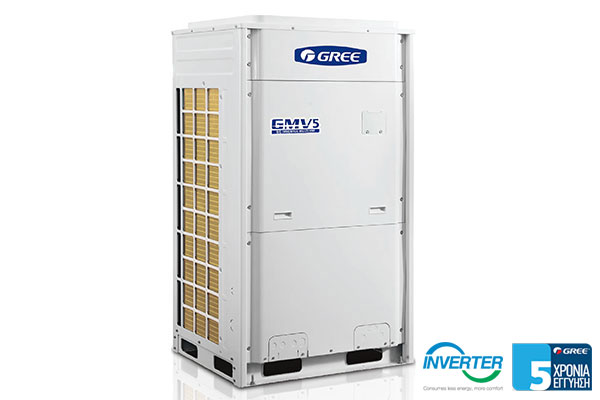

Modular GMV5

Best known for its compact dimensions, discreet design and increased modular installation versatility, allowing total capacity of up to 180 kW, generation 5 Gree GMV combines the versatility of big VRF systems with the wide range of indoor unit choices for medium and large scale commercial applications.

Simple & versatile installation:

GMV 5 offers an increased level of installation versatility due to the big height and length of piping, as well as wide range of indoor units to choose from.

  • max total piping length: 1000m
  • max total piping length between outdoor and indoor unit: 165m
  • max height difference between outdoor and indoor units: 90m
  • max height difference between first branch and last indoor unit: 40m

Modular combination of outdoor units of GMV5



Based on the modular combination of outdoor units GMV5 can achieve a maximum capacity of up to 188kW. The maximum allowed capacity diversity of indoor units can reach 135%, connecting up to 110 indoor units to a single module.

Wide temperature operation range: The units can operate in a wide ambient temperature range decreasing thus capacity loss due to outdoor temperature.

A compact design of outdoor units allows a reduced installation footprint and increased versatility in the installation site.

Sensorless DC Inverter Fan Motor: The indoor unit adopts high-efficiency brushless DC motor. Compared with conventional motor, the efficiency of brushless DC motor is improved by more than 30% Meanwhile, the design of evaporation capacity flow is optimized through emulation software of refrigeration system and the heat exchange amount of evaporator is greatly improved.

180 degree Sine Wave DC Speed Varying Technology. GMV5 can satisfy various places’ demands for different temperature and is able to save a great deal of electricity and provide users with utmost comfort at the same time.
